Oil rotary union 2620-220-252
for air2-passagehydraulic

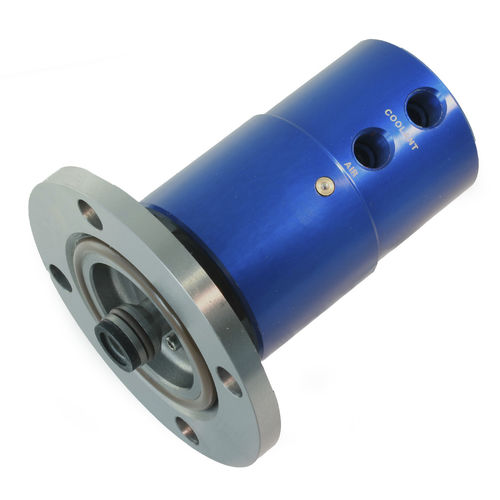

Oil rotary union - 2620-220-252 - DEUBLIN COMPANY - for air / 2-passage / hydraulic

Oil rotary union - 2620-220-252 - DEUBLIN COMPANY - for air / 2-passage / hydraulic

Oil rotary union - 2620-220-252 - DEUBLIN COMPANY - for air / 2-passage / hydraulic - image - 2

Oil rotary union - 2620-220-252 - DEUBLIN COMPANY - for air / 2-passage / hydraulic - image - 3

Oil rotary union - 2620-220-252 - DEUBLIN COMPANY - for air / 2-passage / hydraulic - image - 4

Add to favorites

Compare this product

Characteristics

Medium

for oil, for air

Number of passages

2-passage

Applications

hydraulic, precision

Other characteristics

radial, with seal, flange, ball bearing

Rotational speed

Max.: 7,000 rpm
(43,982.3 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

Max.: 1,015 psi

Min.: 0 psi

Nominal size

0.25 in

Description

Two independent passages for applications such as clamping and unclamping Balanced mechanical seals for each passage provide long life and reduced torque even at maximum pressure Closed seals provide continuous containment of media Dual precision ball bearings for smooth operation Labyrinth system to protect ball bearings Mounting options are compatible with Deublin 2520 or 1579 series unions Media Coolant, Air Air Flow 74.2 CFM Air Temperature 160 °F Coolant Flow 18.2 GPM Coolant Temperature 160 °F
