Water rotary union 157-050-021012
2-passagebrassstainless steel

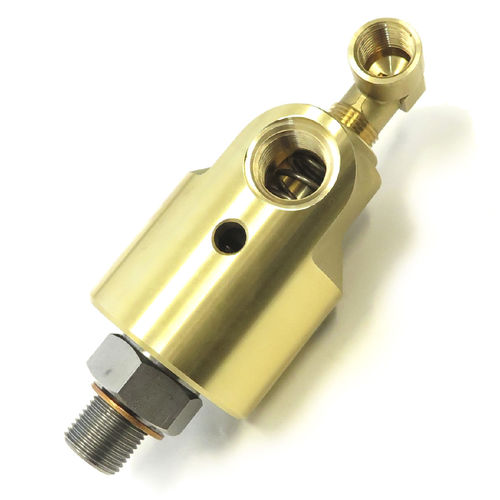

Water rotary union - 157-050-021012 - DEUBLIN COMPANY - 2-passage / brass / stainless steel

Water rotary union - 157-050-021012 - DEUBLIN COMPANY - 2-passage / brass / stainless steel

Water rotary union - 157-050-021012 - DEUBLIN COMPANY - 2-passage / brass / stainless steel - image - 2

Water rotary union - 157-050-021012 - DEUBLIN COMPANY - 2-passage / brass / stainless steel - image - 3

Add to favorites

Compare this product

Characteristics

Medium

for water

Number of passages

2-passage

Material

brass, stainless steel

Other characteristics

radial, with seal, screw-in, ball bearing, dual-flow

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 3,500 rpm
(21,991.15 rad.min-1)

Pressure

Min.: 0 psi

Max.: 750 psi

Nominal size

0.5 in

Description

Monoflow and duoflow design Self-supported rotating union Radial housing connection Balanced mechanical seals Keyed rotor seal Easy and quick replacement of sealing components Ball bearings lubricated for life E.L.S. (Extended Life Service) seal combination for poor water quality 3 vent holes Forged brass housing and stainless steel rotor Special options include threaded vent holes Media Water, Steam, Hot Oil Rotor Connection 3/4"-16 UNF RH Hot Oil Max. Flow 26.9 l/min Hot Oil Max. Temperature 121 °C Steam Max. Flow 112.2 l/min Steam Max. Temperature 121 °C Water Max. Flow 26.9 l/min Water Max. Temperature 121 °C
