Oil rotary union 2620-040-157
2-passagehydraulicprecision

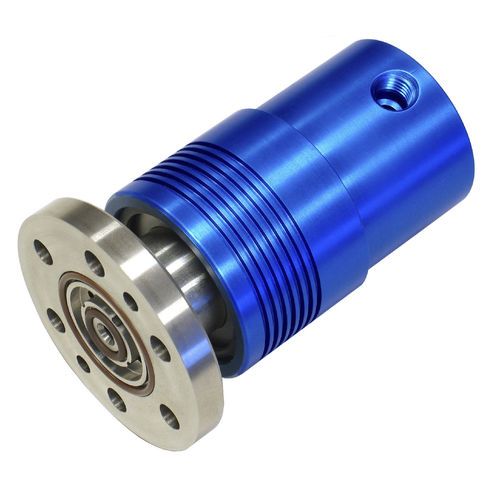

Oil rotary union - 2620-040-157 - DEUBLIN COMPANY - 2-passage / hydraulic / precision

Oil rotary union - 2620-040-157 - DEUBLIN COMPANY - 2-passage / hydraulic / precision

Oil rotary union - 2620-040-157 - DEUBLIN COMPANY - 2-passage / hydraulic / precision - image - 2

Oil rotary union - 2620-040-157 - DEUBLIN COMPANY - 2-passage / hydraulic / precision - image - 3

Oil rotary union - 2620-040-157 - DEUBLIN COMPANY - 2-passage / hydraulic / precision - image - 4

Add to favorites

Compare this product

Characteristics

Medium

for oil

Number of passages

2-passage

Applications

hydraulic, precision

Other characteristics

radial, with seal, flange, ball bearing

Rotational speed

Max.: 12,000 rpm
(75,398.22 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

Max.: 1,450 psi

Min.: 0 psi

Nominal size

0.25 in

Description

Two independent passages for applications such as clamping and unclamping, work piece sensing and cooling Balanced mechanical seals for each passage provide long life and reduced torque even at maximum pressure Closed seals provide continuous containment of media Dual precision ball bearings for smooth operation Labyrinth protection for ball bearings Mounting options are compatible with DEUBLIN 2520 or 1579 Series unions Media Hydraulic Oil, Hydraulic Oil Rotor Connection 80.985 mm Flange, 81 mm pilot Hydraulic Oil Max. Flow 69 l/min Hydraulic Oil Max. Temperature 71 °C Hydraulic Oil Max. Flow 69 l/min Hydraulic Oil Max. Pressure 30 bar Hydraulic Oil Max. Temperature 71 °C
