Refrigerant fluid rotary union 2620-461-100
2-passageprecisionradial

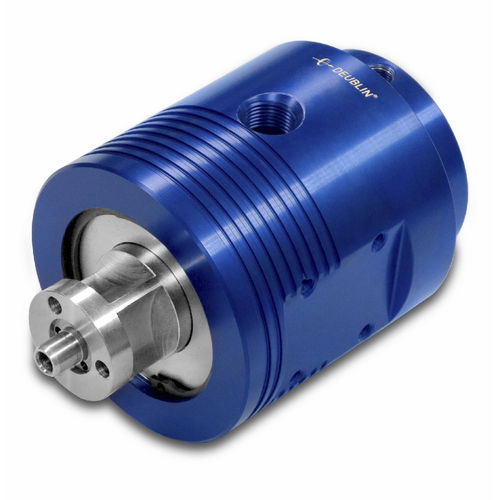

Refrigerant fluid rotary union - 2620-461-100 - DEUBLIN COMPANY - 2-passage / precision / radial

Refrigerant fluid rotary union - 2620-461-100 - DEUBLIN COMPANY - 2-passage / precision / radial

Refrigerant fluid rotary union - 2620-461-100 - DEUBLIN COMPANY - 2-passage / precision / radial - image - 2

Refrigerant fluid rotary union - 2620-461-100 - DEUBLIN COMPANY - 2-passage / precision / radial - image - 3

Add to favorites

Compare this product

Characteristics

Medium

for refrigerant fluids

Number of passages

2-passage

Applications

precision

Other characteristics

radial, with seal, flange, ball bearing

Rotational speed

Max.: 12,000 rpm
(75,398.22 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

Max.: 70 bar
(1,015 psi)

Min.: 0 bar
(0 psi)

Nominal size

0.375 in

Description

Two independent passages for applications such as clamping and unclamping, work piece sensing and cooling Balanced mechanical seals for each passage provide long life and reduced torque even at maximum pressure Closed seals provide continuous containment of media Dual precision ball bearings for smooth operation Labyrinth protection for ball bearings Mounting options are compatible with DEUBLIN 2520 or 1579 Series unions Media Coolant, Air Rotor Connection 35 mm Flange, 10 mm pilot Air Max. Flow 1800 l/min Air Max. Temperature 71 °C Coolant Max. Flow 69 l/min Coolant Max. Temperature 71 °C
