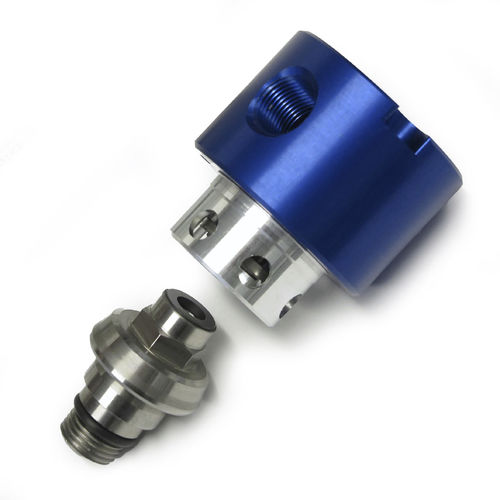

Refrigerant fluid rotary union 1124-330-240
aluminumradialscrew-in

Refrigerant fluid rotary union - 1124-330-240 - DEUBLIN COMPANY - aluminum / radial / screw-in

Refrigerant fluid rotary union - 1124-330-240 - DEUBLIN COMPANY - aluminum / radial / screw-in

Refrigerant fluid rotary union - 1124-330-240 - DEUBLIN COMPANY - aluminum / radial / screw-in - image - 2

Refrigerant fluid rotary union - 1124-330-240 - DEUBLIN COMPANY - aluminum / radial / screw-in - image - 3

Refrigerant fluid rotary union - 1124-330-240 - DEUBLIN COMPANY - aluminum / radial / screw-in - image - 4

Add to favorites

Compare this product

Characteristics

Medium

for refrigerant fluids

Material

aluminum

Other characteristics

radial, screw-in

Rotational speed

Max.: 40,000 rpm
(251,327.41 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

2,030 psi

Nominal size

0.375 in

Description

Single passage for coolant and compressed air Patented AutoSense™ technology changes automatically between closed seals and controlled leakage operation in response to the kind of media Full-flow design has no obstructions to trap swarf or debris Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions Anodized aluminum housing resists corrosion Available with threaded rotor only Media MQL, Coolant, Air Rotor Connection M16x1.5 LH, 17.993 mm pilot Air Max. Flow 938 l/min Air Max. Temperature 71 °C Coolant Max. Flow 75.6 l/min Coolant Max. Temperature 71 °C MQL Max. Flow 938 l/min MQL Max. Temperature 71 °C
