Oil rotary union 1379-860
for airfor vacuum4-passage

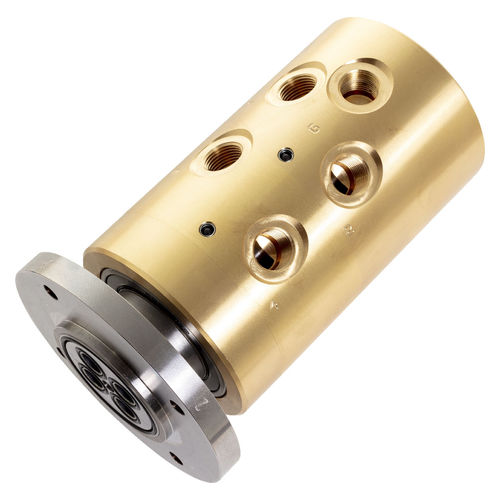

Oil rotary union - 1379-860 - DEUBLIN COMPANY - for air / for vacuum / 4-passage
Oil rotary union - 1379-860 - DEUBLIN COMPANY - for air / for vacuum / 4-passage
Oil rotary union - 1379-860 - DEUBLIN COMPANY - for air / for vacuum / 4-passage - image - 2
Oil rotary union - 1379-860 - DEUBLIN COMPANY - for air / for vacuum / 4-passage - image - 3
Oil rotary union - 1379-860 - DEUBLIN COMPANY - for air / for vacuum / 4-passage - image - 4
Oil rotary union - 1379-860 - DEUBLIN COMPANY - for air / for vacuum / 4-passage - image - 5
Oil rotary union - 1379-860 - DEUBLIN COMPANY - for air / for vacuum / 4-passage - image - 6
Add to favorites
Compare this product


Characteristics

Medium
for oil, for air, for vacuum
Number of passages
4-passage
Applications
hydraulic
Material
brass, stainless steel
Other characteristics
radial, flange
Rotational speed

Max.: 250 rpm
(1,570.8 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

150 psi, 870 psi

Nominal size

0.375 in

Description

Four independent passages for applications such as clamping and unclamping, work piece or tool sensing, and spindle cooling Vent between passages 2 and 3 allows use of two different media without cross contamination. For example, water in passages 1 and 2 and hydraulic oil in passages 3 and 4 Stainless steel and brass components resist corrosion Hardened chrome sealing surface and elastomer-energized seals Dual, widely spaced ball bearings absorb large side loads 5-passage models available Media Vacuum, Hydraulic Oil, Air Air Pressure 150 psi Air Temperature 175 °F Hydraulic Oil Temperature 175 °F Vacuum Temperature 175 °F
