Air rotary union 1005-165-061
for vacuumhydraulicaluminum

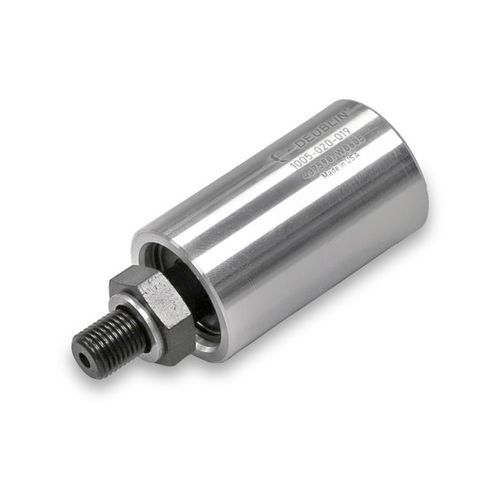

Air rotary union - 1005-165-061 - DEUBLIN COMPANY - for vacuum / hydraulic / aluminum

Air rotary union - 1005-165-061 - DEUBLIN COMPANY - for vacuum / hydraulic / aluminum

Air rotary union - 1005-165-061 - DEUBLIN COMPANY - for vacuum / hydraulic / aluminum - image - 2

Air rotary union - 1005-165-061 - DEUBLIN COMPANY - for vacuum / hydraulic / aluminum - image - 3

Add to favorites

Compare this product

Characteristics

Medium

for air, for vacuum

Applications

hydraulic

Material

aluminum, stainless steel, carbon steel

Other characteristics

radial, screw-in

Rotational speed

Max.: 3,500 rpm
(21,991.15 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

150 psi, 1,000 psi

Nominal size

0.625 in

Description

Monoflow design Self-supported rotating union Radial housing connection Balanced mechanical seals Seal combinations: Carbon Graphite/Hardened Tool Steel or Carbon Graphite/Silicon Carbide Felt oiler in seal cavity for air service Oiler for relubrication (3 to 5 drops/month) Low torque design Weight-optimized design Aluminum housing; stainless steel or carbon steel rotor, depending on model Ball bearings lubricated for life Media Vacuum, Hydraulic Oil, Air 10 CFM Air Temperature 250 °F Air Flow 10 CFM Air Temperature 250 °F Hydraulic Oil Flow 75 GPM Hydraulic Oil Pressure 1000 psi Hydraulic Oil Temperature 250 °F Hydraulic Oil Flow 74.8 GPM Hydraulic Oil Temperature 250 °F Vacuum Flow 1 GPM Vacuum Pressure -14 psi Vacuum Temperature 250 °F Vacuum Flow 1 GPM Vacuum Pressure -13.75 psi Vacuum Temperature 250 °F
