Water rotary union 755-732-330139
for steam2-passagesteel

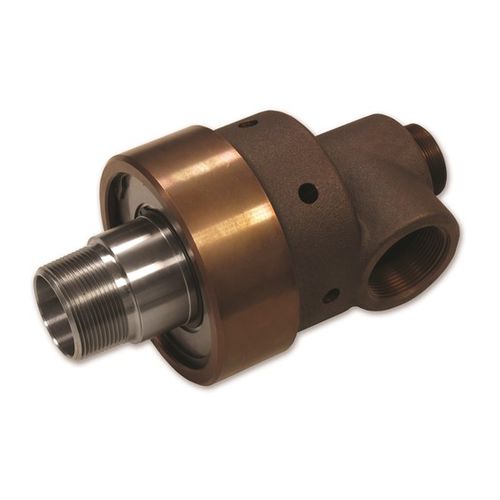

Water rotary union - 755-732-330139 - DEUBLIN COMPANY - for steam / 2-passage / steel

Water rotary union - 755-732-330139 - DEUBLIN COMPANY - for steam / 2-passage / steel

Water rotary union - 755-732-330139 - DEUBLIN COMPANY - for steam / 2-passage / steel - image - 2

Water rotary union - 755-732-330139 - DEUBLIN COMPANY - for steam / 2-passage / steel - image - 3

Water rotary union - 755-732-330139 - DEUBLIN COMPANY - for steam / 2-passage / steel - image - 4

Water rotary union - 755-732-330139 - DEUBLIN COMPANY - for steam / 2-passage / steel - image - 5

Add to favorites

Compare this product

Characteristics

Medium

for water, for steam

Number of passages

2-passage

Material

steel, cast iron

Other characteristics

radial, with seal, screw-in, dual-flow

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 750 rpm
(4,712.39 rad.min-1)

Pressure

1 bar, 14 bar
(15 psi, 203 psi)

Nominal size

2.5 in

Description

Monoflow and duoflow design Self-supported rotating union Radial housing connection Balanced mechanical seals 3 vent slots Cast iron housing standard, Cast iron housing nickel-plated optional Steel rotor Media Water, Steam Steam Max. Flow 2896 l/min Steam Max. Pressure 1 bar Steam Max. Temperature 121 °C Water Max. Flow 695 l/min Water Max. Temperature 121 °C
