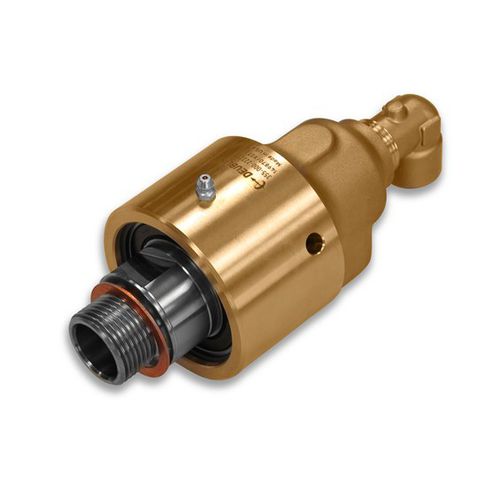

Water rotary union 157-420-401
for hot oilfor steam2-passage

Water rotary union - 157-420-401 - DEUBLIN COMPANY - for hot oil / for steam / 2-passage
Water rotary union - 157-420-401 - DEUBLIN COMPANY - for hot oil / for steam / 2-passage
Water rotary union - 157-420-401 - DEUBLIN COMPANY - for hot oil / for steam / 2-passage - image - 2
Water rotary union - 157-420-401 - DEUBLIN COMPANY - for hot oil / for steam / 2-passage - image - 3
Add to favorites
Compare this product


Characteristics

Medium
for water, for hot oil, for steam
Number of passages
2-passage
Material
brass, stainless steel, bronze
Other characteristics
radial, screw-in, dual-flow
Rotational speed

Max.: 3,500 rpm
(21,991.15 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

10 bar, 52 bar
(145 psi, 754 psi)

Nominal size

0.375 in

Description

Monoflow and duoflow design Self-supported rotating union Radial housing connection Balanced mechanical seals Keyed rotor seal Easy and quick replacement of sealing components Ball bearings lubricated for life E.L.S. (Extended Life Service) seal combination for poor water quality 3 vent holes Forged brass housing and stainless steel rotor Special options include threaded vent holes Media Water Rotor Connection M16x1.5 RH, 17.993 mm pilot Water Max. Flow 26.9 l/min Water Max. Temperature 93 °C

Catalogs

No catalogs are available for this product.

See all of DEUBLIN COMPANY‘s catalogs

Other DEUBLIN COMPANY products
