Water rotary union 6400-031-330
2-passagesteelcast iron

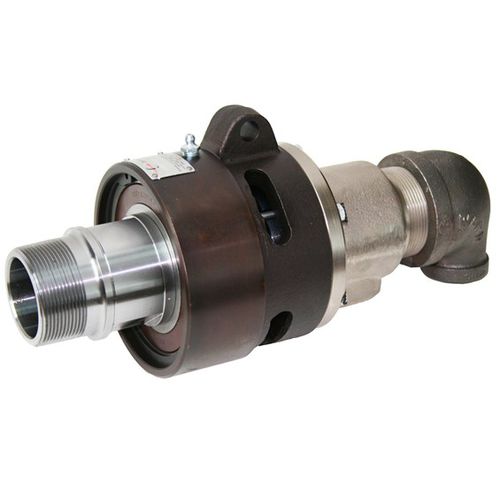

Water rotary union - 6400-031-330 - DEUBLIN COMPANY - 2-passage / steel / cast iron

Water rotary union - 6400-031-330 - DEUBLIN COMPANY - 2-passage / steel / cast iron

Water rotary union - 6400-031-330 - DEUBLIN COMPANY - 2-passage / steel / cast iron - image - 2

Water rotary union - 6400-031-330 - DEUBLIN COMPANY - 2-passage / steel / cast iron - image - 3

Add to favorites

Compare this product

Characteristics

Medium

for water

Number of passages

2-passage

Material

steel, cast iron

Other characteristics

radial, screw-in, with seal, dual-flow, flange

Rotational speed

Max.: 750 rpm
(4,712.39 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

150 psi

Nominal size

2.5 in

Description

Monoflow and duoflow design Self-supported rotating union Radial housing connection Balanced mechanical seals Steel-banded floating seal Easy and quick replacement of sealing components Full-media flow Vent slots Cast iron housing Steel rotor flanged/threaded Seal Combinations: Carbon Graphite/Tungsten Carbide standard, Silicon Carbide/Tungsten Carbide for severe conditions such as poor water quality Media Water Rotor Connection 276.2 mm Flange, 120.625 mm pilot Water Max. Flow 1135 l/min Water Max. Temperature 121 °C
