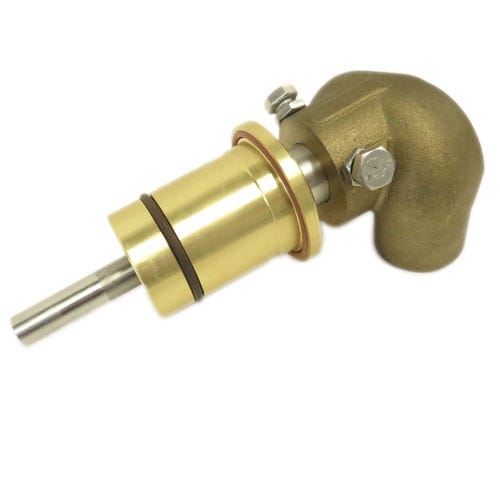

Water rotary union 2420-001-141180
brassstainless steelwith seal

Water rotary union - 2420-001-141180 - DEUBLIN COMPANY - brass / stainless steel / with seal

Water rotary union - 2420-001-141180 - DEUBLIN COMPANY - brass / stainless steel / with seal

Water rotary union - 2420-001-141180 - DEUBLIN COMPANY - brass / stainless steel / with seal - image - 2

Water rotary union - 2420-001-141180 - DEUBLIN COMPANY - brass / stainless steel / with seal - image - 3

Water rotary union - 2420-001-141180 - DEUBLIN COMPANY - brass / stainless steel / with seal - image - 4

Add to favorites

Compare this product

Characteristics

Medium

for water

Material

brass, stainless steel

Other characteristics

radial, with seal, flange, shaft-mounted

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 100 rpm
(628.32 rad.min-1)

Pressure

150 psi

Nominal size

0.75 in

Description

Monoflow and duoflow design In-the-shaft mounted Self-supported rotating union Flanged housing or mounted with retaining plate Balanced mechanical seals Seal combination: Silicon Carbide/Silicon Carbide Brass housing and elbow Stainless steel rotor and supply pipe Engineered sleeve bearing Full-media flow Easily field repairable Media Water Rotor Connection O-ring, 46 mm pilot Water Max. Flow 23 l/min Water Max. Temperature 121 °C
