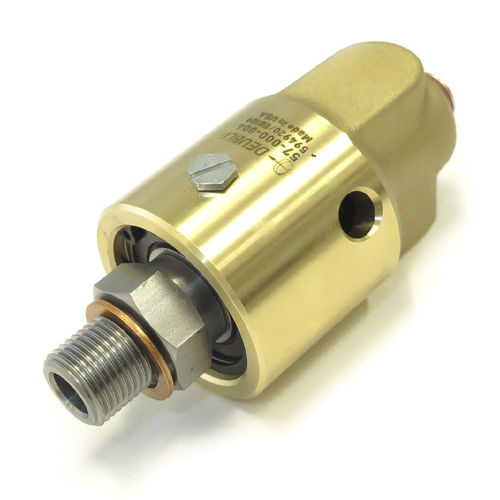

Hot water rotary union 57-000-004
for hot oilfor steambrass

Hot water rotary union - 57-000-004 - DEUBLIN COMPANY - for hot oil / for steam / brass

Hot water rotary union - 57-000-004 - DEUBLIN COMPANY - for hot oil / for steam / brass

Hot water rotary union - 57-000-004 - DEUBLIN COMPANY - for hot oil / for steam / brass - image - 2

Hot water rotary union - 57-000-004 - DEUBLIN COMPANY - for hot oil / for steam / brass - image - 3

Hot water rotary union - 57-000-004 - DEUBLIN COMPANY - for hot oil / for steam / brass - image - 4

Add to favorites

Compare this product

Characteristics

Medium

for hot water, for hot oil, for steam

Material

brass, stainless steel

Other characteristics

radial, with seal, screw-in

Rotational speed

Max.: 3,500 rpm
(21,991.15 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

15 psi, 100 psi, 750 psi

Nominal size

0.375 in

Description

Monoflow and duoflow design Self-supported rotating union Radial housing connection Balanced mechanical seals Keyed rotor seal Easy and quick replacement of sealing components Ball bearings lubricated for life E.L.S. (Extended Life Service) seal combination for poor water quality 3 vent holes Forged brass housing and stainless steel rotor Special options include threaded vent holes Media Water Rotor Connection 5/8"-18 UNF LH Housing Connection 3/8"-18 NPT Water Flow 3.3 GPM Water Pressure 150 psi Water Temperature 195 °F
