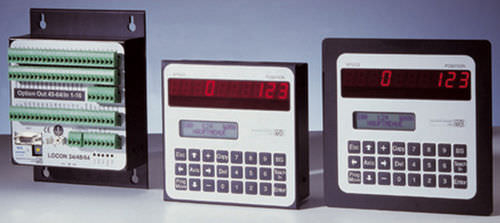

Electronic cam controller LOCON 24

Compact series with DIN-size of 144 x 144 mm and an overall depth of only 44 mm. LOCON 24 features 24 or 32 outputs, 64 programs can be selected via the integrated front control panel or they can be selected externally. A memory for 1000 data records as well as an extensive range of functions round off the performance. The version with integrated front control panel for the front-panel installation (either IP54 or IP65) offers the operating convenience demanded nowadays: seven-segment display for position and speed indication, 2-line LCD display with 10-multi-lingual menu that can be adjusted by the user and a decimal keypad and function keypad. The item entry of that model series can be made with incremental encoders, absolute encoders parallel up to 13 bits and SSI-systems 24 bits. Here it does not matter whether it is an absolute encoder or for instance a linear measuring system. Optionally LOCON 24 is available with 16 inputs and logic connections (simple PLC-functions). This allows simple tasks to be relocated from the PLC to the cam control and therefore these tasks can be processed much faster and at a low cost. Besides, this performance characteristic includes a shift register. Furthermore the following options are available for that model series: angle-time cams analog outputs
