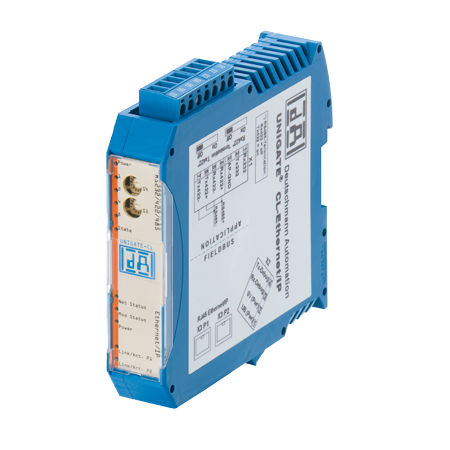

Ethernet/IP converter UNIGATE CL-EtherNet/IP

protocolRS232RS-485

- Norm compliant - Certified - Configurable - Programmable - Eplan macro available - Ready-to-use - Designed and manufactured in Germany The Protocol Converter UNIGATE CL connects devices such as automation components via their serial interfaces to the required fieldbus or industrial Ethernet standard. RS232, RS485 and RS422 interfaces are on Board as a standard feature. The communication between the serial side and the bus takes place either through the device configuration and a selection of the commercially available protocol, such as Modbus ASCII, Modbus RTU (Master or slave), 3964 (R) (e. g. for RK512) or the device is controlled by a script for protocols such as DIN measuring bus, DIN 19244 or other proprietary protocols. This Script is created with the free PC tool, ‘Protocol Developer’. You decide whether you want to program the Script yourself or hire Deutschmann Automation to do so.
