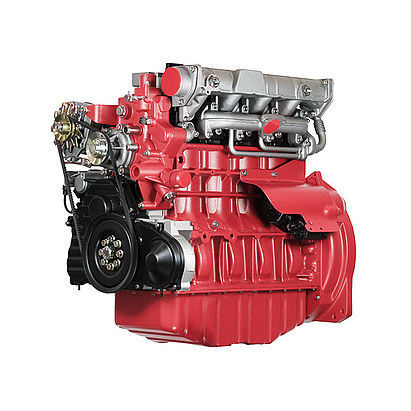

Diesel engine D 2011 L2 I
4-cylinder2-cylinderturbocharged

diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
4-cylinder, 2-cylinder
Technology
turbocharged, in-line
Cooling system
water cooling, air cooling
Emissions level
Tier 2, Tier 4, Tier 3, Euro 3, Euro 2
Other characteristics
compact, oil-cooled
Power

23 kW
(31.271 hp)

Torque

90 Nm
(66.3806 ft.lb)

Rotational speed

Max.: 2,800 rpm
(17,592.92 rad.min-1)

1,700 rpm
(10,681.42 rad.min-1)

Min.: 900 rpm
(5,654.87 rad.min-1)

Displacement

1.6 l
(0.423 gal)

Weight

175 kg
(385.81 lb)

Length

573 mm
(22.6 in)

Width

448 mm
(17.6 in)

Height

673 mm
(26.5 in)

Description

2-cylinder engine with inline turbocharging,oil-cooled or optionally with an integrated cooling system. The 4-cylinder engine is also available with water cooling and charge air cooling. The compact engine design and an optional PTO drive reduce the installation costs and increase the number of applications. Best cold starting properties even under extreme conditions. The engines in the power range < 56 kW meets to the US EPA Tier 4 i. The robust engine design allows worldwide operation even with high sulphur fuels. All parts for maintenance on one side of the engine, long oil change intervals and easy changing of engine fluids reduce the running costs and increase the availability of the machinery. An efficient injection system and optimized combustion ensure optimum engine performance at low consumption.
