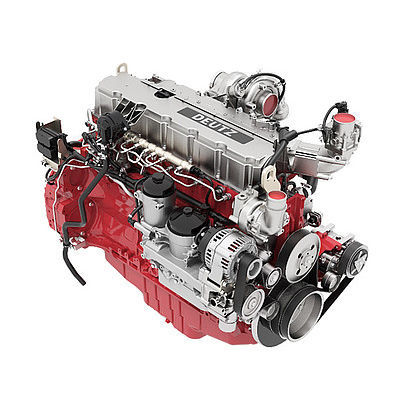

Diesel engine TCD 7.8 L66-cylinderturbochargedin-line
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- 6-cylinder
- Technology
- turbocharged, common rail, electronically carbureted, in-line
- Product applications
- for railway applications, for construction equipment
- Cooling system
- water cooling
- Emissions level
- Stage V, Tier 4, Euro 5, Stage IV, Euro 4
- Other characteristics
- water-cooled
- Power
260 kW
(353.502 hp)- Torque
1,400 Nm
(1,032.587 ft.lb)- Rotational speed
1,450 rpm
(9,110.62 rad.min-1)Max.: 2,200 rpm
(13,823.01 rad.min-1)Min.: 600 rpm
(3,769.91 rad.min-1)- Displacement
7.8 l
(2.061 gal)- Weight
725 kg
(1,598.35 lb)- Length
1,214 mm
(47.8 in)- Width
793 mm
(31.2 in)- Height
1,046 mm
(41.2 in)
Description
Water-cooled 6-cylinder inline engine with turbocharging, charge air cooling and cooled external exhaust gas recirculation.
Engine and exhaust aftertreatment (EAT) are optimised for highest total system efficiency and thus ensure lowest consumption and total operating cost.
Consistent installation and connection dimensions of the engine facilitate the changeover of existing installations to the next stage of the emission laws. The size and design of the engines will remain identical in the change to Stage V due to a protected technology. No changes to the customer‘s device. A variant without EAT is available as an option for less regulated markets.
The powerful DEUTZ Common Rail (DCR®) injection system and the electronic engine control (EMR) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption.
The engines meet the requirements of the EU Stage IV and US EPA Tier 4 with DVERT® selective catalytic reduction (SCR) and particulate filter (DPF). Through the use of the DPF they already comply with the EU Stage V emissions standard expected from 2019.*
