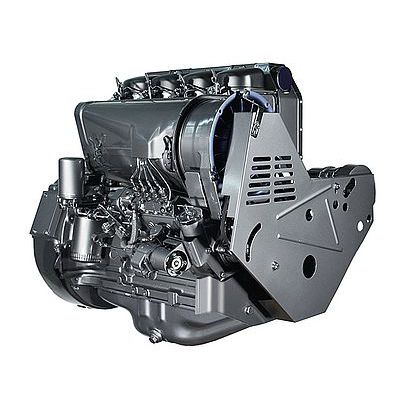

Diesel engine F L 912 series
3-cylinder4-cylinder6-cylinder

Diesel engine - F L 912 series - DEUTZ - 3-cylinder / 4-cylinder / 6-cylinder
Diesel engine - F L 912 series - DEUTZ - 3-cylinder / 4-cylinder / 6-cylinder
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
6-cylinder, 4-cylinder, 3-cylinder, 5-cylinder
Technology
in-line
Product applications
for generator sets
Cooling system
air cooling
Other characteristics
compact, air-cooled, high-efficiency, low-noise
Power

Min.: 26.5 kW
(36.03 hp)

Max.: 78 kW
(106.05 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,424.78 rad.min-1, 11,309.73 rad.min-1)

Displacement

3.2 l, 4.3 l, 6.5 l
(0.108 gal, 1.136 gal, 1.717 gal)

Weight

Min.: 270 kg
(595.25 lb)

Max.: 410 kg
(903.9 lb)

Length

Min.: 691 mm
(27.2 in)

Max.: 1,094 mm
(43.1 in)

Width

Min.: 679 mm
(26.7 in)

Max.: 680 mm
(26.8 in)

Height

Min.: 796 mm
(31.3 in)

Max.: 838 mm
(33 in)

796 mm
(31.3 in)

Description

F 3 L 912 Air-cooled 3-cylinder naturally aspirated engine in inline arrangement. Low noise emissions due to acoustically optimized components with very smooth running and high durability. Easy, inexpensive installation due to minimum weight and small installation space. Best cold starting performance even under extreme conditions. The robust engine design allows worldwide operation even with high sulphur fuels. Highly efficient injection and combustion system ensures optimum engine performance at low consumption. A very good load response ensures an immediate power supply. F 4 L 912 Air-cooled 4-cylinder naturally aspirated engine in inline arrangement. Low noise emissions due to acoustically optimized components with very smooth running and high durability. Easy, inexpensive installation due to minimum weight and small installation space. Best cold starting performance even under extreme conditions. The robust engine design allows worldwide operation even with high sulphur fuels. Highly efficient injection and combustion system ensures optimum engine performance at low consumption. A very good load response ensures an immediate power supply. F 6 L 912 Air-cooled 6-cylinder naturally aspirated engine in inline arrangement. Low noise emissions due to acoustically optimized components with very smooth running and high durability. Easy, inexpensive installation due to minimum weight and small installation space. Best cold starting performance even under extreme conditions. The robust engine design allows worldwide operation even with high sulphur fuels. Highly efficient injection and combustion system ensures optimum engine performance at low consumption.
