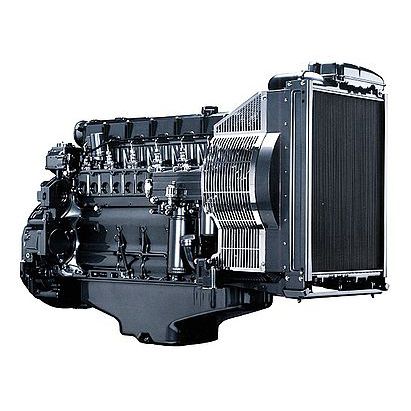

Diesel engine BF M 1013 series
4-cylinder6-cylinderturbocharged

diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
6-cylinder, 4-cylinder
Technology
turbocharged, electronically carbureted, in-line
Product applications
for generator sets
Cooling system
water cooling, air cooling
Emissions level
Tier 2, Euro 2
Other characteristics
compact, water-cooled, low-noise
Power

Max.: 225 kW
(305.915 hp)

Min.: 92 kW
(125.085 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,424.78 rad.min-1, 11,309.73 rad.min-1)

Displacement

4.8 gal, 7.2 gal
(1.268 gal)

Weight

570 kg, 660 kg, 770 kg
(1,256.63 lb, 1,455.05 lb, 1,697.56 lb)

Length

1,318 mm, 1,572 mm, 1,870 mm, 1,923 mm
(51.9 in, 61.9 in, 73.6 in, 75.7 in)

Width

739 mm, 866 mm, 886 mm, 1,103 mm
(29.1 in, 34.1 in, 34.9 in, 43.4 in)

Height

1,001 mm, 1,073 mm, 1,239 mm, 1,586 mm
(39.4 in, 42.2 in, 48.8 in, 62.4 in)

Description

Water-cooled 4-cylinder inline engine with turbocharging and charge air cooling. The robust engine design allows worldwide operation even with high sulphur fuels. Easy, inexpensive installation due to minimum weight and small installation space. Best cold starting performance even under extreme conditions. Low noise emissions due to acoustically optimized components with very smooth running and high durability. Also available with an electronic motor regulator (EMR) to allow easy integration into the electronic device control and monitoring system. A very good load response ensures an immediate power supply.
