Diesel engine BF M 1015 series6-cylinder8-cylinderturbocharged
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- 6-cylinder, 8-cylinder
- Technology
- turbocharged, electronically carbureted
- Product applications
- for generator sets
- Cooling system
- water cooling, air cooling
- Emissions level
- Tier 2, Euro 2
- Other characteristics
- compact, water-cooled, low-noise
- Power
Max.: 517 kW
(702.924 hp)Min.: 285 kW
(387.492 hp)- Rotational speed
1,500 rpm, 1,800 rpm
(9,424.78 rad.min-1, 11,309.73 rad.min-1)- Displacement
11.9 l, 16 l
(3.144 gal, 4.227 gal)- Weight
Max.: 1,300 kg
(2,866.01 lb)Min.: 1,020 kg
(2,248.72 lb)- Length
Max.: 1,750 mm
(68.9 in)Min.: 1,635 mm
(64.4 in)- Width
Max.: 1,815 mm
(71.5 in)Min.: 1,315 mm
(51.8 in)- Height
Max.: 1,925 mm
(75.8 in)Min.: 1,740 mm
(68.5 in)
Description

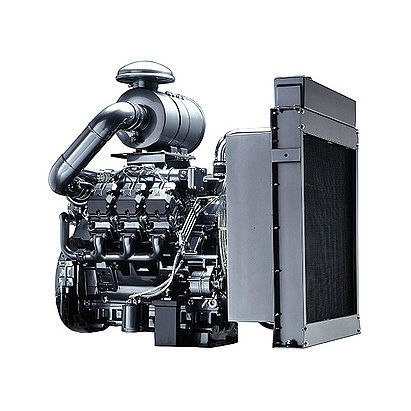

Water-cooled V6 engine with turbocharging, charge air cooling and four-valve technology.
Also available with an electronic motor regulator (EMR) to allow easy integration into the electronic device control and monitoring system.
The robust engine design allows worldwide operation even with high sulphur fuels.
Low noise emissions due to acoustically optimized components with very smooth running and high durability.
Robust and reliable mechanical injection system.
Best cold starting performance even under extreme conditions.
A very good load response ensures an immediate power supply.
