Laser cutting line for ironfor aluminumfor steel
Add to favorites
Compare this product
Characteristics
- Technology
- laser
- Material
- for aluminum, for steel, for stainless steel, for iron, for carbon steel
- Product handled
- sheet metal, coil
- Control type
- CNC, numerical control, with digital assistance, PLC-controlled, servo-driven
- Associated function
- stacking
- Workpiece loading
- with automated loading
- Other characteristics
- high-speed, coil-fed, with automatic feeder, high-performance, high-efficiency, large capacity, modular, CE, high-productivity
- X travel
3,000 mm
(118.11 in)- Y travel
1,600 mm
(62.99 in)- Z travel
100 mm
(4 in)- Maximum cutting height
3 mm
(0.1 in)- Minimum cutting height
0.4 mm
(0.02 in)- Cutting speed
1,000 mm/s
- Laser power
6,000 W
- Overall length
32 m
(104'11" )- Load capacity
Max.: 16,000 kg
(35,274 lb)Min.: 0 kg
(0 lb)
Description

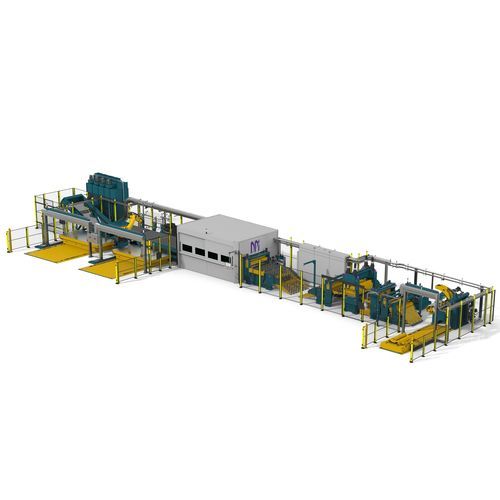

Enhance your production capabilities with this cutting-edge laser cutting line, delivering precision, speed, and durability.
Key Features:
Performance: 6 kW fiber laser source, 60 m/min introduction speed, 1600 × 3000 mm cutting area.
Optimized Management: Robotic stacking up to 15 pieces/min, uninterrupted pallet changes, centralized waste recovery.
Advanced Technology: Movable modules (no foundations required), semi-automatic cleaning, standardized components for simplified maintenance.
