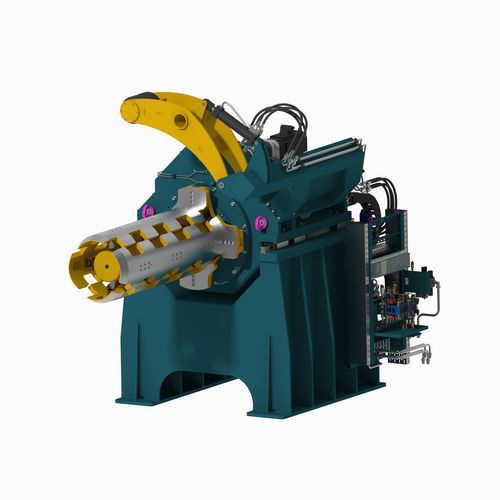

Tape unwinder coilautomaticmotorized
Add to favorites
Compare this product
Characteristics
- Type
- coil, tape
- Operation
- motorized, automatic
- Other characteristics
- robust, for heavy loads, with lifting device
- Roll width
Max.: 1,600 mm
(62.99 in)Min.: 250 mm
(9.84 in)- Roll weight
Max.: 16,000 kg
(35,273.96 lb)Min.: 0 kg
(0 lb)
Description
This innovative solution eliminates the need for foundations, featuring rails secured with chemical anchors for fast and adaptable installation. Equipped with a 150 mm expandable mandrel and automatic band centering, the decoiler ensures reliable performance and simplified maintenance through standardized hydraulic, electrical, and pneumatic systems.
Key Features:
Energy Efficiency: Brake energy is fed back into the electrical grid, reducing operating costs.
Adaptable Capacity: Designed for coils up to 16 tons (expandable on request) and a maximum width of 1600 mm (adjustable upon request).
Reliability and Simplicity: SIEMENS motorization, 480 mm retractable mandrel, and standardized components for optimal operation.
