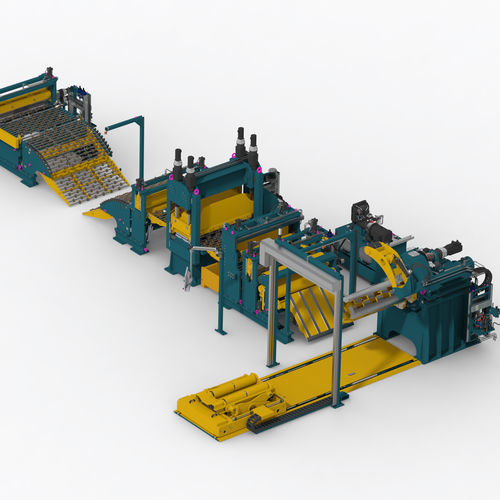

High-strength steel press feeding line

for fine blankingfor magnetic stripsfor the automotive industry

Uncoiler: No foundations required, rails secured with chemical anchors. Capacity: Coils up to 16 tons (expandable upon request), width ranging from 250 to 1600 mm. SIEMENS motorization with brake energy recovery for operational cost savings. Introduction Module: Automatic band centering, standard passing height of 1100 mm. Clear access for easy maintenance of the leveling module. Leveler: Semi-automatic roller cleaning, automatic adjustment based on the sheet. 15 SIEMENS servo motors for smooth and efficient feed. Automatic lubrication and greasing for enhanced durability. Loop Pit: No foundations required, electronic synchronization of feeding rollers. Coil width from 250 to 1600 mm, PU rollers to protect surface-sensitive materials. Automatic squaring system for perfect alignment. Advantages: Simplified maintenance: Standardized components and optimized access. Cost-effective: Advanced technologies for reduced operational expenses. Versatile and adjustable: Modules adaptable to your specific needs.
