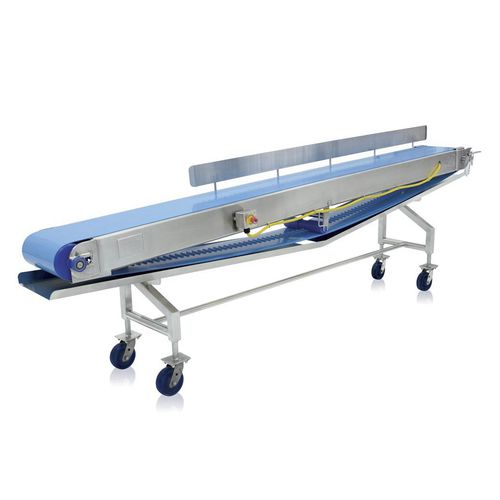

Belt conveyor

transportloadingbuffer

General features Auxiliary in-feed conveyor could be supplied to transport cheese blocks from the upstream process to the FS40A shredder. Advantages Allow a constant feed of cheese to the FS-40 without having to index the blocks Allows buffer time to do other operations, between 1.5 to 2.5 minutes for the FS-40 to empty the infeed conveyors (auxilary and FS-40 conveyors) Standard features include Loading of 40lbs blocks 1½ HP Vandergraph drum motor, w/VFD (NEMA-4 washdown rated) 3mm Volta belt with cleats and an a-section v-guide for alignment Full stainless steel (SS304) frame, sanitary design Open, heavy-duty tubular frame design for easy cleaning and maintenance Polished to a sanitary #4 finish (32RA) Sanitary stainless steel casters and forks with USDA-approved faultless 6” urethane wheels All components are quick-release for fast set-up or dismantle Comprehensive instruction manual with pictures in color and detailed part listing Customizable length; dimensions to be determined
