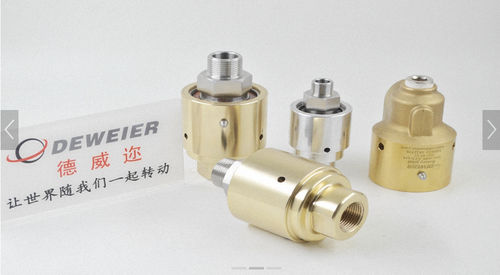

Water rotary union DGR002000for oilfor airmulti-passage
Add to favorites
Compare this product
Characteristics
- Medium
- for water, for oil, for air
- Number of passages
- multi-passage
- Material
- stainless steel
- Other characteristics
- with seal, compact
- Rotational speed
750 rpm, 2,500 rpm, 3,000 rpm, 3,500 rpm
(4,712.39 rad.min-1, 15,707.96 rad.min-1, 18,849.56 rad.min-1, 21,991.15 rad.min-1)- Pressure
16 bar, 20 bar, 25 bar, 40 bar
(232 psi, 290 psi, 363 psi, 580 psi)- Nominal size
Min.: 6 mm
(0.236 in)Max.: 50 mm
(1.969 in)
Description
1.Rotary union with compact design to be mounted inside the shaft.
2. Stationary ring in impregnated graphite guarantees high resistance to wearing and allows dry running for short periods.
3.Hardened stainless steel rotor.
4.Optimised seal balance ratio for minimal friction.
5.Available with non-contact sealring with hydrodynamic grooves.
