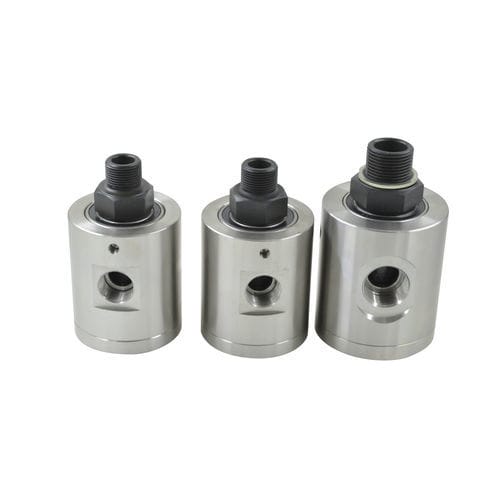

Water rotary union DRL series
for oilfor airmulti-passage

water rotary union
water rotary union
water rotary union
water rotary union
water rotary union
water rotary union
water rotary union
water rotary union
Add to favorites
Compare this product


Characteristics

Medium
for water, for oil, for air
Number of passages
multi-passage
Applications
high-pressure, maritime industry, for the chemical industry, for the steel industry
Material
aluminum, steel
Other characteristics
with seal, dual-flow, single flow
Rotational speed

200 rpm
(1,256.64 rad.min-1)

Pressure

210 bar
(3,046 psi)

Nominal size

Min.: 8 mm
(0.315 in)

Max.: 16 mm
(0.63 in)

Description

1.Two separate ways rotating joint for air and hydraulic oil at high pressure; 2.The rotor is made of cemented steel and lapped for reducing friction; 3.The seals are made of PTFE; 4.Low torque and long life with professional low friction seals; 5.We can tailor the products we need for our customers;
