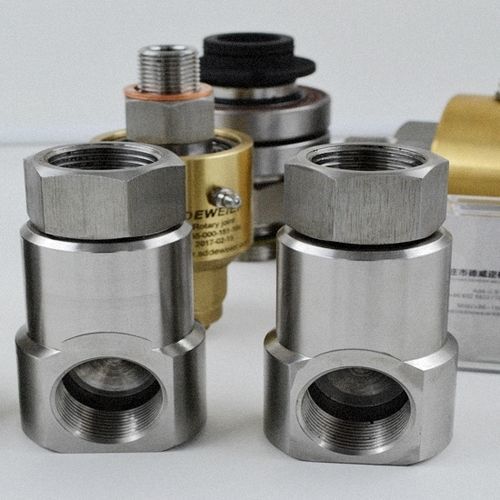

Water rotary joint SNfor airfor oilfor steam
Add to favorites
Compare this product
Characteristics
- Medium
- for water, for air, for oil, for steam
- Number of passages
- multi-passage
- Applications
- high-pressure, precision, for the steel industry, low-pressure, for the food industry
- Material
- steel
- Other characteristics
- screw-in, with seal, right-angle
- Rotational speed
30 rpm
(188.5 rad.min-1)- Pressure
70 bar, 160 bar
(1,015 psi, 2,321 psi)- Nominal size
Min.: 10 mm
(0.394 in)Max.: 40 mm
(1.575 in)
Description
1.Standard high hardness O-ring and support ring - field replaceable；
2.Two rows of precision grade steel ball support, stable operation, no swing；
3.Sealing surface finish treatment to extend service life；
4.Optional low temperature or high temperature sealing material；
