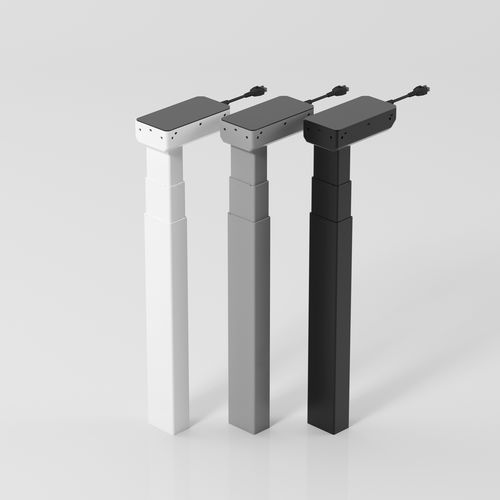

Furniture lifting column DD351.3

3-stagecompact24 V

Electric lifting columns for stable desks Sturdy and very comfortable: The DD05.3 electric lifting columns are equipped with low-play sliding guides which ensure that the height of the desk can be adjusted comfortably. The special gear also ensures consistent whisper-quiet operations. The outstanding stability means that this drive solution is ideally suited for use in modern desks, in accordance with DIN EN 527 and BIFMA X5.5. The elegant rectangular profile of the DD05.3 can easily be integrated into a variety of table frame constructions. This gives furniture manufacturers an exceptional amount of design freedom for developing their desks. There is only a minimal air gap between the individual profiles which underlines the elegant design of the electric lifting columns. Powerful drive technology With a compressive force of up to 800 Newton, the DD05.3 electric lifting columns are very powerful and can meet demanding requirements. The maintenance-free 24-volt DC motors with two Hall sensors are extremely robust and reliable. All column profiles move synchronously. Electric lifting columns for maximum versatility: With their minimal installation dimension of 560 millimetres and standard stroke length of 650 millimetres, these lifting columns provide a high degree of variability for adjusting desks. The DD05.3 is compatible with OKIN's SMARTeco, SMARTneo and COMPACTeco control units. These can be programmed to meet your requirements and feature ISP intelligent system protection.
