Storage warehouse shelving Pallet Racking - Pallet Flow

dynamicfor heavy loadspallet

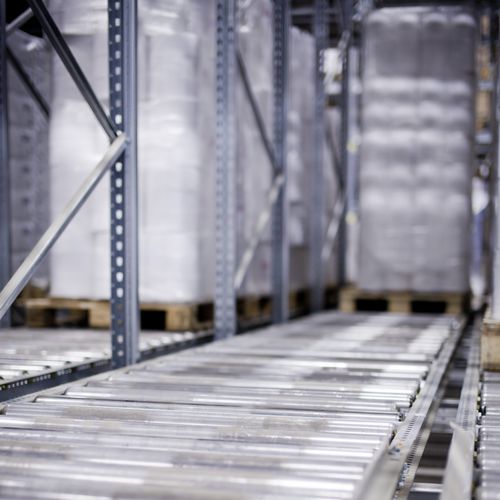

Pallet Flow racking, otherwise known as Pallet Live Storage, is suitable for FIFO (First In First Out) storage of goods with a high rate of turnover and fast access to goods is required, but utilises up to 60% less space than a conventional pallet racking warehouse. The Dexion Pallet Flow racking system is mainly used when a limited range of palletised goods needs to be stored in large quantities using the first-in, first-out principle. At the on-load face, pallets are placed in storage lanes and automatically roll forward on sloping wheel conveyors under the force of gravity. Pallet speed down the lane is controlled by a series of brake rollers and when the pallets reach the retrieval face, they are brought to a controlled halt by a combined load separator and end stop unit. This type of storage technology, which is frequently used in the drinks industry or as a buffer storage facility in the manufacturing industry, requires only two fork truck aisles, one for loading and one for retrieval. Benefits: • Up to 60% less floor space than conventional pallet racking • First-in First-out (FIFO) operation provides automatic stock rotation • Dedicated load and retrieval faces mean only two fork truck aisles are required • Higher speed of operation within the warehouse
