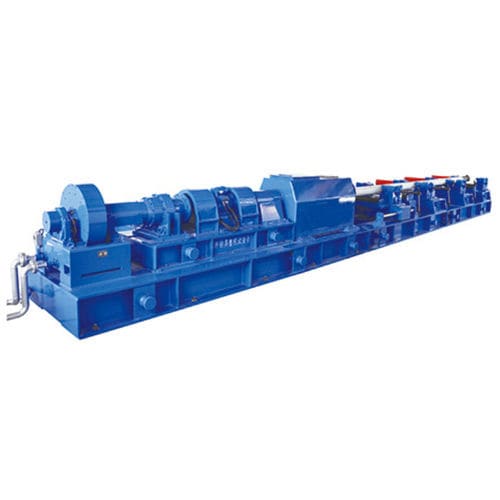

Torque test bench LZSY series

performanceflowautomatic

Downhole Motor Test Bench consists of host machine, dynamical system, circulatory system, hydraulic control system, cooling system, testing system, and can test the performance of downhole motors from 1 11/16” to 11 1/4” under whole-working condition. The test bench adopts advanced control system to implement automatic, semi-automatic or manual testing on loading torque, adjusting flow rate, collect the data such as torque, rotating rate, differential pressure, flow rate, temperature, etc and output the performance parameter table and curve of downhole motor. The test bench fully meet the requirement of manufacturers and oil field to test the performance of downhole motors. 1) We realized the simultaneously test of high speed and big torque on one equipment; 2) We own many measures to damping and isolation, to make the operation smooth and the test accurate; 3) The man-machine function is powerful: automatic, manual, semi-automatic can switch conveniently; 4) Abnormal sound and light alarm, security and mutual lock; 5) It is environmental- friendly, electrical-drived, noise-low and no pollution.
