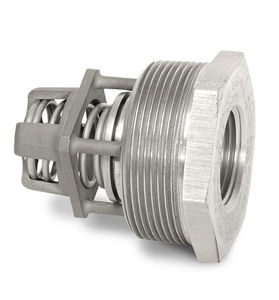

Disc check valve SCV®for gasNPTthreaded
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Fluid
- for gas
- Connexion
- NPT
- Body
- threaded
- Material
- stainless steel
- Other characteristics
- standard, horizontal, anti-corrosion, silent
- DN
Max.: 3 in
Min.: 0.5 in
- Pressure
Max.: 3,600 psi
Min.: 0 psi
- Temperature
Max.: 470 °F
(243 °C)Min.: 0 °F
(-18 °C)
Description
The DFT® Model SCV® Check Valve is a corrosion-resistant, dependable, versatile and economical spring-assisted, non-slam check valve for a wide range of applications. Whether the fluid is liquid, gas or steam, the SCV® provides tight shutoff and protects other equipment in the system from water hammer. Its stainless steel construction assures a long service life.
Standard Features:
NPT & SW Ends
Stainless Steel Construction
Inconel® X-750 Spring
Spring-Assisted Silent Closing, Non-Slam
Zelon® "O" Ring Body Seal
Horizontal or Vertical Installation
Body-Guided Disc
Tight Shutoff Lapped Disc & Seat
Buna-N CO2 resistant "O" ring is available upon request.
