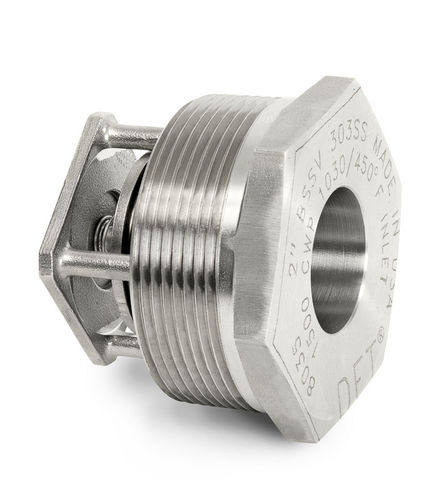

Disc check valve 8094threadedstainless steelin-line
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Body
- threaded
- Material
- stainless steel
- Other characteristics
- in-line, standard, horizontal, silent
- DN
Max.: 4 in
Min.: 1 in
- Pressure
Max.: 6,000 psi
Min.: 0 psi
Description
DFT® Vacuum Breakers provide effective protection against collapse of pressure vessels, tanks and rolls. They prevent condensate "back-up" when equipment is shut down or inlet steam is reduced by modulating control valves. In piping systems, DFT® Vacuum Breakers are used to break siphons, prevent pipe collapse during transient pressure drops, and to provide addition of air on the downstream side of check valves to dampen water hammer.
Standard Features:
Threaded O.D. (MNPT)
Unthreaded Inlet Bore
Stainless Steel Construction
Spring-Assisted Silent Closing
Horizontal or Vertical Installation
Tight Shutoff - Lapped Disc & Seat
Easy Maintenance
Versatile
