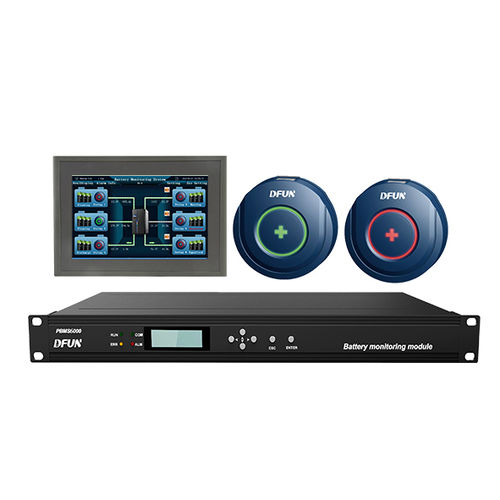

Condition monitoring system PBMS6000

data centerfor UPSEthernet

PBMS6000 Battery Monitoring Solution is designed for large data center projects in which a large quantity of batteries from multiple sites can be monitored in centralization. ▸ Monitor Battery String Voltage, Charge and Discharge Current, Ripple Voltage & Current ▸ Calculate Battery String SOC ▸ Auto-Balancing ▸ Auto-sensing for the Battery Sensor's ID Address ▸ Setpoint Alarming (Upper Limit / Lower Limit) ▸ Data Collecting ▸ Data Uploading Function via Build-in RS485 (Modbus-RTU) & Ethernet (Modbus-TCP or SNMP) ▸ View Battery String Status: Equalizing, Discharging, Floating Charge, Stand by and Abnormal Status Feature ➢ 24/7 Hours On-line Monitoring & Remote Alarms Notification ➢ Suitable for Big Data Center, Multi-site and Multi-pole battery Application ➢ Very Flexible Application, can use for battery string with hundreds of batteries (Max.420pcs) or several strings (Max. 6 strings) with hundreds of batteries ➢ Separated String Voltage and String Current Measuring Module，Powered by Communication Bus, Can Flexiable Configure According to Site Situaltion ➢ Ring Communication, any communication failure will not affect other sensors communication ➢ Anti-interference Design, Support to Connect with High-frequency UPS ➢ Measure String Ripple Current and Ripple Voltage ➢ Provide HMI for Local Display ➢ On-line Balancing Function ➢ On-line Remote Firware Upload ➢ Support Auto-Sensing for the Battery Sensor's ID Address ➢ Support Multi Communication Protocol (MODBUS-TCP, MODBUS-RTU, SNMP) ➢ Apply with IEEE 1188-2005 Standards
