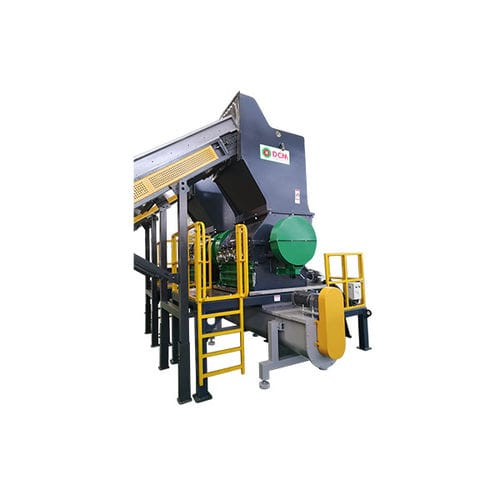

Rotor granulator DGF

wetdryfor plastics

–Anti-wear machine housing – Ladder blade rotor configuration for films and hollow plastics – Suitable for wet and dry granulation – 20-40% additional throughput – Heavy duty bearings – Oversized external bearing housings – Knives are externally adjustable – Robust welded steel construction – Wide choice of rotor variations – Electrical hydraulic control to open housing – Electrical hydraulic control to open screen cradle – Replaceable wear plates – Amp meter control –Extra flywheel – Double infeed hopper – Roller feeder – Mounted screw feeders in hopper – Winding protection – Metal detector – Metal separator – Bespoke colour scheme – Increased motor drive PLASTICS FILMS PLASTIC BOTTLES THIN WALLED HOLLOW PLASTICS THIN WALLED PLASTIC COMPONENTS The DGF Film & Bottle Granulator has been specially design for the processing of films, bottles, and other hollow thin walled plastics. It has a centrally hinged two-piece cutting chamber with a robust welded steel construction, with the upper and lower sections of the housing meeting horizontally. Reversible stator knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re-sharpening and adjustment of the stator knives. There is a hinged screen cradle and hinged door for easy screen access.
