Compact, simple lift for the smallest loads
The DH-VZG is a safe and easy-to-use compact interior lift, designed to handle small loads (parcels, boxes, barrels, small machinery,…).
Option OAU803 is specially adapted for gas bottles. It includes a smaller platform, and a bottle holder to secure the bottles in vertical position.

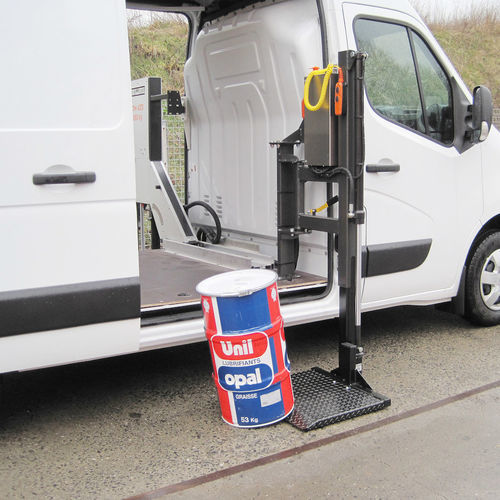

The DH-VZG.01.01 features a fixed frame, whereby the platform travels straight up and down from its mounting position inside the vehicle. The DH-VZG.01.02 is equipped with an swing-out frame, whereby the platform can pivot from a travel position inside the vehicle to a work position outside of the vehicle, and then go up and down.
CHARACTERISTICS
PLATFORM
• Robust steel platform with a fixed leading edge
• Very flat platform, for easy loading and unloading of the cargo
FUNCTIONAL & MECHANICAL CHARACTERISTICS
• Single column, to be mounted to the floor and to the side of the vehicle body
• Frame consisting of a telescopic tubular construction and a single acting hydraulic lift cylinder
• Type 1 = fixed frame: the platform travels straight up and down from its mounting position inside the vehicle (only suitable for chassis with add-on body, not for factory built panel vans)
• Type 2 = articulated frame: the platform can pivot from a travel position inside the vehicle to a work position outside the vehicle, then lift / lower outside the footprint of the body (also suitable for factory built panel vans)
• Special execution available for the manipulation of gas bottles, with 315x340 mm steel platform and a bottle holder to secure the gas bottles in the vertical position [OAU803]
HYDRAULICAL CHARACTERISTICS
• 1 single acting lift cylinder
