Standard lift gate DH-LMP.20

for truckstrailermilitary

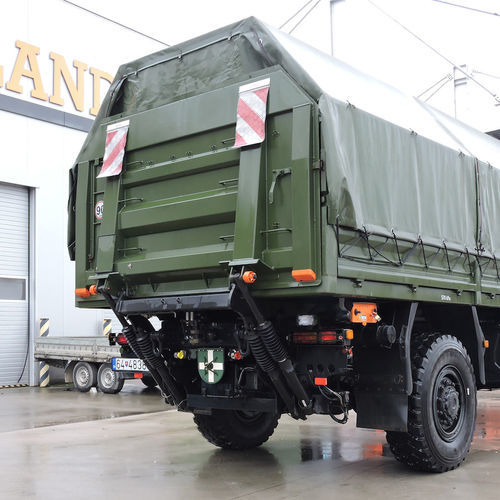

The DH-LMP.20 is equipped with a compact lift frame, that requires 100 mm less overhang than the standard model DH-LM.20. It is specially adapted to suit trucks, trailers and semi-trailers with a very short overhang behind the rear axle or the spring hangars on the vehicle chassis (e.g. military trucks, city-trailers with rear steering axle,...). The DH-LMP.20 is the most popular execution. But similar compact LMP executions exist for other lift capacities: DH-LMP.10 for 750-1000 kg, DH-LMP.15 for 1000-1500 kg, and DH-LMP.25 for 2000-2500 kg capacity. • Compact lift frame voor mounting in a very short overhang • Lift frame without cross tube available (for mounting on bodies with scissor lift) • Wedged platform. Level ride with automatic tilt at ground level. Adjustable platform orientation. • Lift frame in Protection PLUS finish (zinc phosphate + KTL epoxy primer + polyester powder top coat) CHARACTERISTICS PLATFORM • Light-weight aluminium platform, or heavy-duty steel platform • Aluminium platform with profiles oriented in longitudinal direction [type V.., and a cross milled anti-slip protection pattern • Synthetic rollers for the contact between the platform and the ground • Maximum platform depth: 2250 mm (see technical characteristics for detail. Longer platforms possible on DH-LM.30) FUNCTIONAL & MECHANICAL CHARACTERISTICS • Conical / wedge platform. Level ride with automatic tilt at ground level • Platform tilt adjustable at any position from the exterior controls • Compact lift frame voor mounting in a very short overhang HYDRAULICAL CHARACTERISTICS • 2 lift cylinders for maximum platform stability
