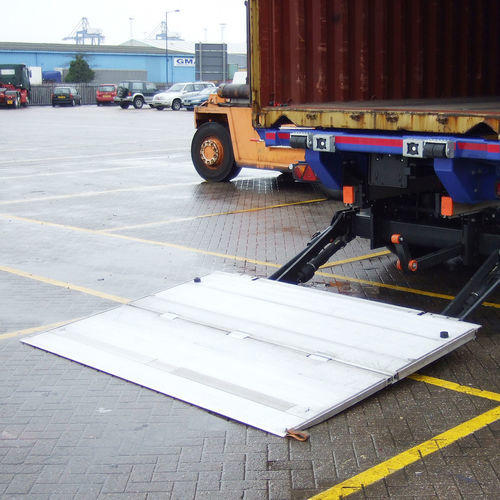

Retractable lift gate DH-SO7.20

for truckstrailerfor semi-trailers

The slider lifts DH-SO… are equipped with a double folded platform, that rests on top of the lift arms when the lift is stowed away in its travel position. This compact construction is perfectly fit for installation on vehicles with very short overhang (e.g. semi-trailers with rear steering axle). Its platform is made of 2 light-weight aluminium sections, to maximize the pay-load of the vehicle and make the manual folding and unfolding of the platform as easy as possible for the operator. The DH-SO7 is lighter than the DH-SO6 and offers more ground clearance, but requires 50 mm more overhang for an equivalent platform depth. It is designed for general purpose distribution and parcel delivery. Both the DH-SO6 and DH-SO7 offer 1500-2000 kg lift capacity, and are suitable for heavy-duty trucks from 10-25T GVW, trailers and semi-trailers. CHARACTERISTICS PLATFORM • Weight-saving full aluminium platform (base section + foldable point) • Synthetic rollers for the contact between the platform and the ground • The folding and unfolding of the platform are assisted by powerful torsion springs FUNCTIONAL & MECHANICAL CHARACTERISTICS • Conical / wedge platform. Level ride with automatic tilt at ground level • Platform tilt adjustable at any position from the exterior controls • Standard frame [SO7.20.03] with pump unit on side; or special frame for even shorter mounting space [SO7.20.04 - see option OAU013] with pump unit in mid position HYDRAULICAL CHARACTERISTICS • 2 lift and 2 tilt cylinders for maximum platform stability • Electrical safety valves on all cylinders • Manual emergency operation on all electrovalves
