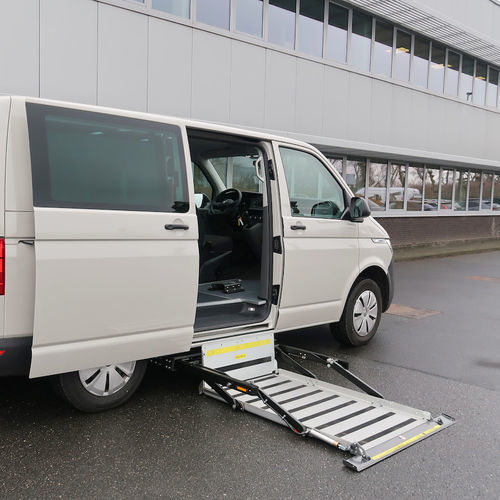

Foldable lift gate DH-CH104.03

side-mountfor wheelchairfor disabled persons

The DH-CH104 is a slim cassette lift that allows installation under the side door of panel vans and minibuses, also on those models with reduced underfloor height. All the movements of the lift are automatic and controlled by a 4 button remote control. The lift can be mounted in class M1 vehicles. Thanks to the robust and clever lift arm geometry, the DH-CH104 guarantees maximum stability and comfort for the wheelchair occupant and user. • Slimmest cassette in its class ** Compact installation below the vehicle floor • The parallelogram-shaped arm system guarantees superior stability • Robust 1-piece platform, eliminating as many moving parts as possible. Reduced maintenance and maximum operational reliability • Automatic locking of the platform in its travel position. Mechanical unlocking possible in case of emergency • Compact hydraulic power pack in 2 parts (hydraulics & electrics separately) suitable for installation on the smalles vehicles CHARACTERISTICS PLATFORM • Platform construction: steel platform frame with aluminium slip-resistant top plate • Automatic locking of the platform in its travel position. Mechanical unlocking possible in case of emergency • Robust 1-piece platform, eliminating as many moving parts as possible. Reduced maintenance and maximum operational reliability • Raised side profiles as roll-off protection on the L+R sides of the platform • Flashing lights integrated in the L+R platform sides FUNCTIONAL & MECHANICAL CHARACTERISTICS • Lift frame and platform stowed in a sealed cassette. The roll-stop forms the outboard cover • Flat platform, level ride • Fixed stabiliser rods, platform orientation is only adjustable during installation
