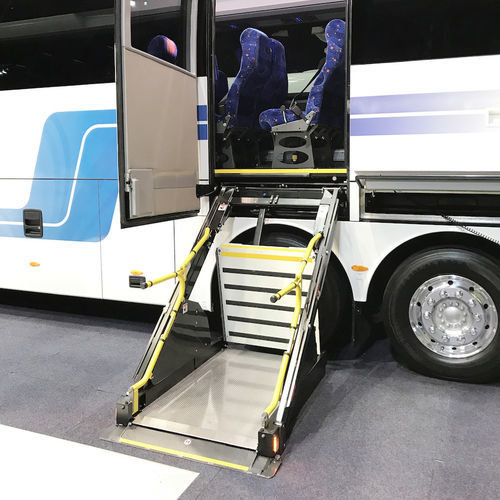

Foldable lift gate DH-CH101.05

side-mountfor wheelchairbus

Cassette lift with maximum travel downwards The DH-CH101.03 and .05 are designed for installation on M3 buses and coaches, in a compartment high above ground level, for instance above the rear axle. The standard execution is equipped with a solid single-piece platform of 1200 mm long, perfectly suited to regular wheelchairs. A manually extensible platform is available as an option [OWP014.1]. This execution allows the operator to extend the platform from 1450 to 1750 mm platform depth, to load and unload longer wheelchairs, hospital beds, or stretchers. The strong lift arms offer excellent platform stability to the wheelchair occupant through the full working range of the lift. • Robust 1-piece platform, eliminating as many moving parts as possible. Reduced maintenance and maximum operational reliability • Solid lift arm construction with 2 lift cylinders providing maximum platform stability, and optimum sense of safety for the wheelchair occupant on the platform • Excellent after-sales service. Professional network of regional DHOLLANDIA service branches and independent distributors in more than 70 countries worldwide. • lift capacity increased to 500 kg on selected models • aluminium tear plate platform surface (lighter & offering better slip resistance) • improved locking system for the safety rails in the raised position • double, hydraulic + mechanical locking of the roll-stop at the outboard platform edge • automatic locking of platform inside cassette, automatic release upon deployment • new hydraulic pump unit with quick-fit plug-and-play connections
