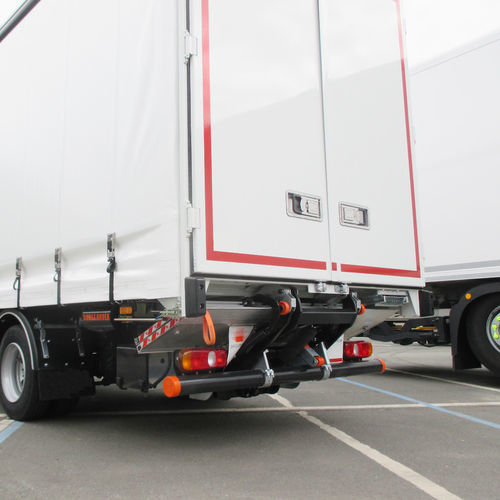

Foldable lift gate DH-RC.10

for truckselectricfor heavy loads

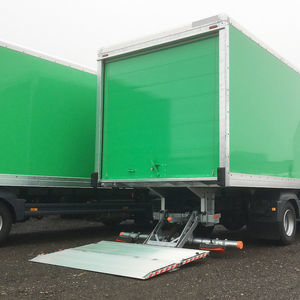

Light fold-away lift with level-ride platform The DH-RC.10 is the light-duty alternative offering a level ride from the vehicle floor to the ground (and vice versa), and automatic tilt at ground level. While the half-dip ride lifts DH-RP are meant for the cost conscious fleet owners delivering small pallets or boxes and doing general freight and expediting, the level-ride DH-RC.10 (and heavier models) are better suited for high stack cargo and rolling carts. The DH-RC.10 is designed for commercial vehicles up to 12T GVW. A special execution for refrigerated bodies is available as an option [OAP628]. CHARACTERISTICS PLATFORM • Weight-saving full aluminium platform (base section + foldable point) • The folding and unfolding of the platform are assisted by powerful torsion springs • Synthetic rollers for the contact between the platform and the ground FUNCTIONAL & MECHANICAL CHARACTERISTICS • Conical / wedge platform. Level ride with automatic tilt at ground level HYDRAULICAL CHARACTERISTICS • 1 centrally mounted lift cylinder • Electrical safety valves on all cylinders • Manual emergency operation on all electrovalves • Cylinder piston rods in hard-chromed stainless steel • Cylinder(s) equipped with rubber gaitors • Robust pump unit 12V or 24V DC mounted at the side of the lift frame ELECTRICAL CHARACTERISTICS • Control box with battery disconnect switch, joystick control and change-over switch [OAE030.BT.0] • Electrical controls without sensitive electronic components in basic configuration • Safe exterior controls with compulsory 2-hand operation • Electric motor with thermal cut-out fuse
