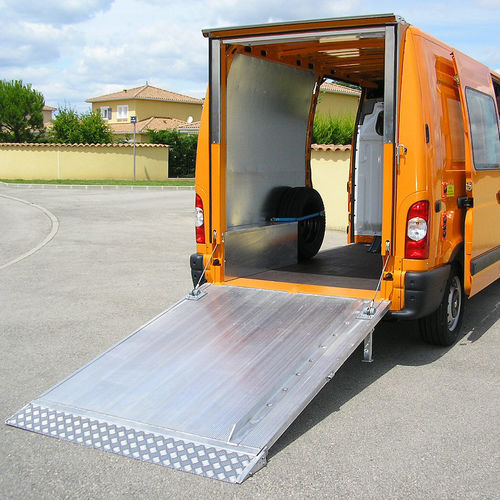

Vehicle ramp DH-ACH.10.01

transportfixedhydraulic

Light hydraulic ramp with aluminium platform The DH-ACH.10.01 is a light-weight hydraulic ramp with aluminium platform and superior aesthetic finish. As the closing mechanism is incorporated in 2 columns mounted in the door aperture of the vehicle body, no parts of the closing mechanism (springs, cylinders,…) are visible from the outside. The DH-ACH.10.01 is traditionally used for the transport of horses or other animals. More recently, it is also being used for other applications, such as the collection of waste bins, the transport of garden equipment (small tractors, lawn mowers, etc.) For the transport of live animals, columns made of stainless steel are available [option OAT130]. • Very neat and handsome finish: no technical parts of the closure mechanism (springs, cylinders,...) are visible from the outside • Very easy and comfortable operation without human effort ** Platform is opened & closed hydraulically CHARACTERISTICS PLATFORM • Without platformlock on client request [OAP420] FUNCTIONAL & MECHANICAL CHARACTERISTICS • Opening and closing by means of 2 tilt cylinders in 2 vertical steel columns, mounted at the left and right side in the door aperture, and a steel rope connection to the platform • Very neat and handsome finish: no technical parts of the closure mechanism (springs, cylinders,...) are visible from the outside • Also often used as podium for demonstration or hospitality vehicles (e.g. mounted at the side) HYDRAULICAL CHARACTERISTICS • Robust pump unit 12V or 24V DC, supplied loose for mounting on the vehicle chassis • Cylinder piston rods in hard-chromed stainless steel
