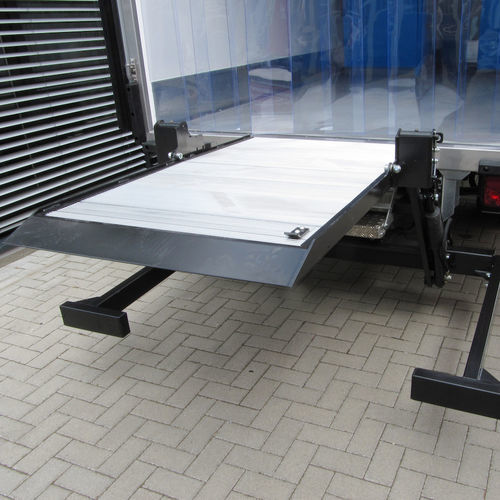

Retractable lift gate DH-SC.05

for trucksvanvehicle

The DH-SC.05 is the heavy-duty version of the CITY SLIDER lift, and is usually mounted on van chassis and light commercial trucks. In its travel position, the platform is safely stored underneath the chassis of the vehicle, and the driver has free access to the cargo space inside the vehicle. In its work position, the platform offers sufficient work surface to manipulate roll-cages, white and brown goods, parcels, etc… In comparison, the DH-SC.05 is heavier duty than the .04 version, and is equipped with hydraulic instead of manual retraction. CHARACTERISTICS PLATFORM • Foldable platform. 2 platform sections consisting of a steel frame and aluminium profiles • Very flat platform, for easy loading and unloading of the cargo FUNCTIONAL & MECHANICAL CHARACTERISTICS • Flat platform, level ride • Reinforced lift frame for more intensive use (than type SC.04) HYDRAULICAL CHARACTERISTICS • 2 lift cylinders for maximum platform stability • Electrical safety valves on all cylinders • Manual emergency operation on all electrovalves • Cylinder piston rods in hard-chromed stainless steel • Robust pump unit 12V or 24V DC, supplied loose for mounting on the vehicle chassis • Hydraulic retraction by means of a hydromotor + gearwheel system [OAH022] ELECTRICAL CHARACTERISTICS • Control box with battery disconnect switch, joystick control and change-over switch [OAE030.BT.0] • Safe exterior controls with compulsory 2-hand operation • Electrical controls without sensitive electronic components in basic configuration • Electric motor with thermal cut-out fuse FITTING • Compact lift frame and short lift arms for fitting in a short mounting space
