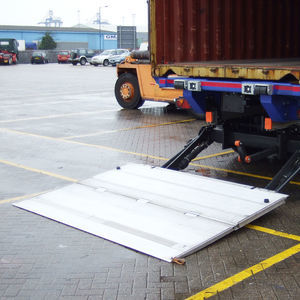

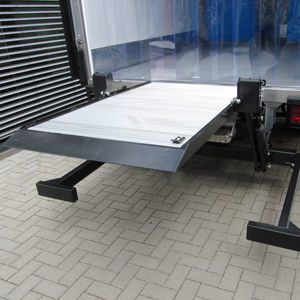

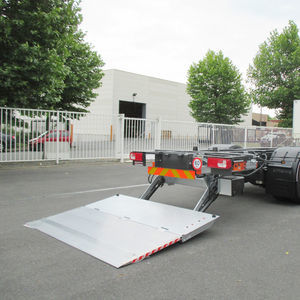

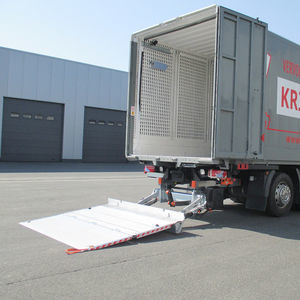

Retractable lift gate DH-SM.20

for truckstrailerhandling

The DH-SM(R).20 is the top seller slider lift in the medium capacity range. This versatile lift is able to handle various types of cargo, including pallets, up to max. 2000 kg. In its travel position, the DH-SM.20 is safely stored underneath the chassis of the vehicle. It is ideal for operations needing frequent fork lift loading or access to loading docks, and all applications requiring quick and free access to the cargo space. There are 2 executions: the DH-SM.20 designed for truck chassis, and the DH-SMR.20 designed for quick-fitting on trailer and semitrailer chassis. • Best-seller in the medium-duty capacity range. • Powerful, stable 4-cylinder tail lift for 1500-2000 kg lift capacity. • Maximum platform depth 2250 mm. • Safely stored under the vehicle chassis. No damage when reversing into loading docks, or when loading or unloading with a fork lift. Free access to the cargo space. • Wedged platform. Level ride with automatic tilt at ground level. Adjustable platform orientation. • Electrical controls without sensitive electronic components in basic configuration • Lift frame in hot-dip zinc plated or "galvanised" finish. Best possible protection against corrosion [OAT104]. CHARACTERISTICS PLATFORM • Steel base section with aluminium point, or full aluminium platform [option OAP601] • Synthetic rollers for the contact between the platform and the ground • (Un)folding of the platform point reinforced by torsion springs [OAP613] FUNCTIONAL & MECHANICAL CHARACTERISTICS • Conical / wedge platform. Level ride with automatic tilt at ground level • Platform tilt adjustable at any position from the exterior controls
