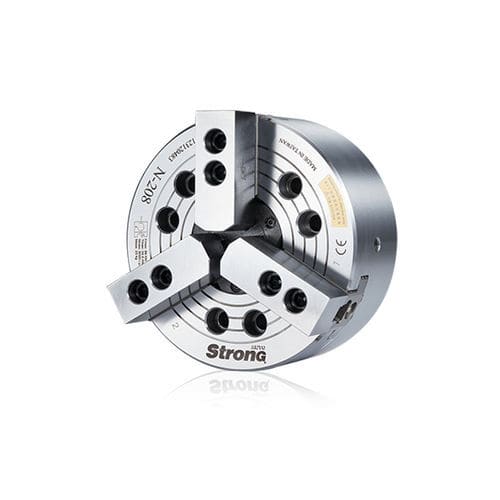

Power chuck N-200A3-jawthrough-hole
Add to favorites
Compare this product
Characteristics
- Type
- automatic
- Number of jaws
- 3-jaw
- Other characteristics
- through-hole
- Rotational speed
Min.: 1,200 rpm
(7,539.82 rad.min-1)Max.: 7,000 rpm
(43,982.3 rad.min-1)- Gripping force
Min.: 3,671 kgf
Max.: 24,472 kgf
- Outer diameter
Min.: 135 mm
(5 in)Max.: 800 mm
(31 in)
Description
3-jaw through-hole power chuck (adapter included)
• Adapter for A2 spindle(DIN 55026)
• Easy to mount.
• Suitable for long bore or special workpiece.
• Can be equipped with automatic feeder to increase productivity.
• Can be equipped with back gauge.
• Replaceable for Japanese brands.
• The draw nut is customizable.(consult with sales)
• Standard product 6~10" made of high strength alloy steel SCM440 from Japan
• Above 21 inches are made of FCD600.
• Sliding surfaces, master jaws, and interior parts are hardening and grinding
• Quick replace cover
