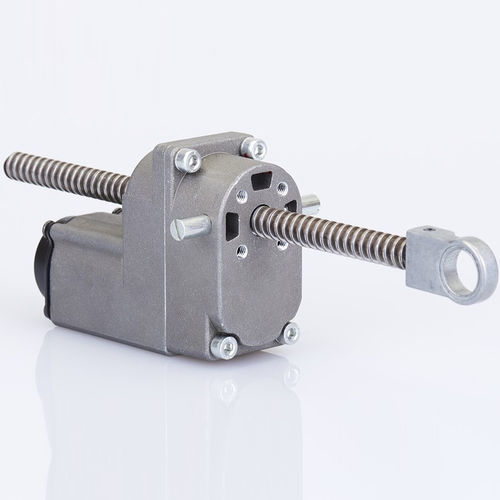

Linear actuator Line DAM serieselectricscrewspur gear
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Technology
- screw, spur gear
- Motor
- permanent magnet
- Voltage
- 24-volt, 12-volt
- Other characteristics
- pull
- Force
Max.: 3,000 N
Min.: 28 N
- Speed
Max.: 48 mm/s
Min.: 1.4 mm/s
- Ambient temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)
Description
DAM line with spindle pitch 3mm
Direct current electric actuator with trapezoidal spindle pitch 3mm. Motor is parallel to the axle. Actuator body in zamac. Transmission with spur gear system. Five gear ratios with four different motor types. Other ratios upon request. Linear speed up to 48mm/s and a push/pull dynamic load up to 300 kg.
Available in 12V and 24V versions. Voltage may be customized according to client requests.
The spindle may be customized with different attachments and lengths.
General informations
• Gearbox Housing: zamac die-casting
• Gears: helical teeth cutting gears or straight teeth sintered gears
• Motor: d.c. permanent magnet motor with carbon brushes
• Standard screw: AISI 430F TR8.8 x 3
• Working temperature: -10°C ̴ + 60°C
• Options: a)Hall sensor magnetic encoder, b)Thermal protector, c) screw ø 9.8mm pitch 3, d)bronze nut, e) different screw material.
