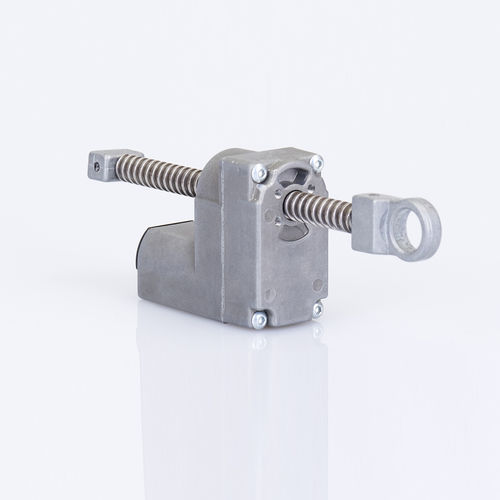

Linear actuator Line DAB electricscrewspur gear
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Technology
- screw, spur gear
- Other characteristics
- compact, mini, pull
- Force
1,100 N
- Speed
57 mm/s
Description
DAB line with spindle pitch 3mm
Mini linear actuator which comes in very compact dimensions. Pitch 3mm. Motor parallel to the axle. Body in zamac. Transmission with spur gear. 3 gear ratios and 4 motor types. Maximum linear speed of 57mm/s. Push/pull dynamic load up to 110 kg.
Available in 12V and 24V versions. May be customised according to client requests.
The spindle may be customised with different attachments and lengths
General information
• Gearbox Housing : zamac die-casting
• Gears : helical teeth cutting gears or straight teeth sintered gears
• Motor: d.c. permanent magnet motor with carbon brushes
• Standard screw: AISI 430F TR8.8 x 3
• Working temperature : -10°C ̴ + 60°C
• Options : a) Hall sensor magnetic encoder – b) Thermal protector – c) bronze nut – d) different screw material.
