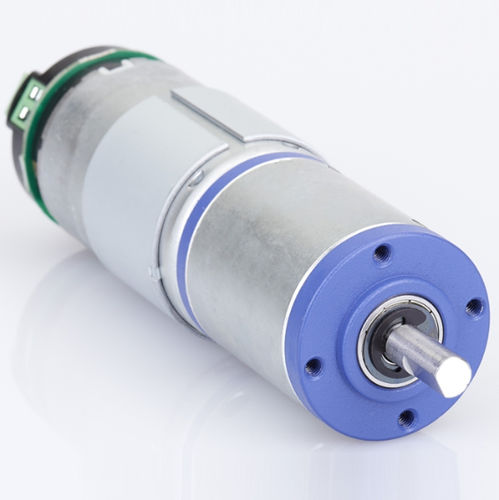

Planetary gear-motor DMPD-Q seriesDC12 V24 V
Add to favorites
Compare this product
Characteristics
- Motor type
- DC
- Type
- planetary
- Voltage
- 24 V, 12 V
- Product applications
- industrial
- Gear ratio
Max.: 354 unit
Min.: 4 unit
- Operating temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)
Description
42 mm diameter planetary gear motor. It’s possible to use different motors with various lengths, according to the limits and needs imposed by the space it is to be used in. Various gear ratios with a maximum speed of 1000 rpm. The electrical characteristics may be customised.
General information
• Direction of rotation: according to polarity
• Working temperature: -10°C ̴ + 60°C
• Gearbox with sleeve bearing
• Options: a) hall sensor magnetic encoder – b) ball bearing – c) customized connections
