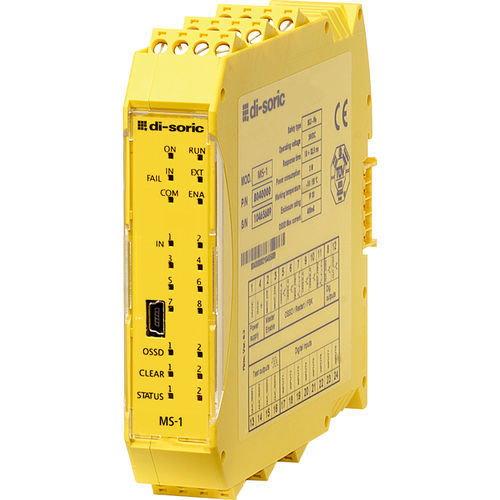

Safety protection relay MS-1 DCemergency stopDIN rail
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- safety
- Network
- DC
- Applications
- emergency stop
- Mounting
- DIN rail
- Communication
- USB
- Other characteristics
- programmable, configurable, modular
- Tripping current
100 mA
- Trigger voltage
Max.: 29 V
Min.: 19 V
Description
The modular and configurable MODSI safety system can monitor and control various safety equipment in parallel, including safety light curtains / grids, mechanical switches, floor mats, emergency stop switches and two-hand circuits, as well as combinations of these. Using expansion modules, MODSI can be individually adapted to the respective safety requirements.
Programmable main module, can control all other expansion modules
Can also be used as a stand-alone device
Internal LOG file containing the last 5 configuration modifications
Slot for optional MS-M configuration memory card
Rear MS-SC bus for connecting additional expansion modules
USB interface for PC connection for configuration via MS Safety Designer
Including CD-ROM with MS Safety Designer software
