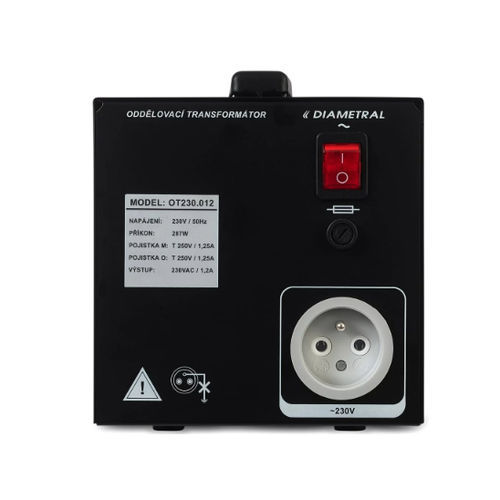

Isolation transformer OT230.012
powerfor electronicssecondary

isolation transformer
isolation transformer
isolation transformer
isolation transformer
isolation transformer
isolation transformer
isolation transformer
Add to favorites
Compare this product


Characteristics

Type
power, isolation
Applications
for electronics
Other characteristics
secondary
Primary voltage

230 V

Secondary voltage

230 V

Primary current

1.2 A

Frequency

50 Hz

Description

Robust and generously dimensioned isolation transformers for powering all devices that need to be separated from the power supply network. A wide range of devices solves the requirements for separating various devices from the power grid in fields such as electrotechnical production, development, research, education and hospitals. Characteristics of isolating transformers Sine waveform of the output voltage 50Hz (same as the mains). Output voltage separated from the mains supply. Soft-start function for power devices. Robust metal chassis. Sufficiently dimensioned transformer for permanent supply of power to the load. Technical parameters Output voltage stability - by network stability Stability of the output frequency - by network stability Galvanically separate output - YES Fuse input - T 250 V / 1,25 A Fuse Output - T 250 V / 1,25 A The length of the supply cord - 2 m Dimensions (V, W, H – approx.) - 172 x 164 x 282 mm Weight - 6,0 kg Warranty - 24 months Sine waveform of the output voltage The output voltage is obtained by transforming the mains voltage 230 V / 50 Hz. The course of the output voltage is clean with a frequency of 50 Hz without parasitic oscillations. Separation of the output from the mains voltage A transformer with separation of primary and secondary windings is used to transform the voltage. The output voltage is galvanically separated from the 230 V mains voltage. Shielded separation of primary and secondary windings The primary and secondary windings are separated from each other by a grounded shield. Soft-start The high power isolating transformers are equipped with a Soft-start function for safe start-up.
