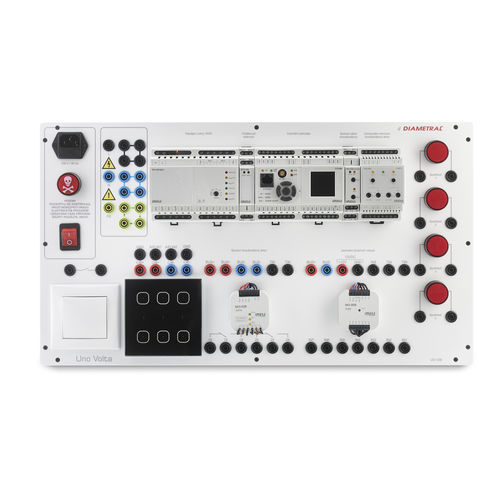

Electrical installation demonstration board UV-109

The UV-109 tutorial panel is used to practice and make experiments with integration of basic heavy current home wiring of intelligent homes using Inels system. Students will get familiar with the problems of modern systems for controlling home distributions and will learn how to program the Inels control system. If students have The UV-100 and UV-110 modules for a disposal, they are able to compare the advantages and potential disadvantages of the system in comparison to conventional heavy current wiring or the EIB / KNX based system. Power supply of this panel is realized by 230V / 50Hz voltage from the mains. Parts used PS3-100 / iNELS; Power supply 100W, IN AC 100-250VAC, OUT: 27.6V / 3.6A and 12.2V / 0.35A, 6M CU3-02M; Central unit, 2x CIB bus, RF Control interface, 1x EBM bus, 6M IM3-80B; Binary input unit, 8x binary input, 12V DC / 75 mA output, box BPS3-02M; Bus separator from power supply, for two lines CIB, 1M SA3-02M; Switching 2-channel actuator, 2x switching contact 16 A, 1M DA3-22M; Universal dimming 2-channel actuator, ESL / LED / RLC, 2x 400 VA, 3M SA3-02B; Switching 2-channel actuator, 2x switching contact 8 A, box Touch Panel Inels Glass, 6 Buttons, 1 piece Wall switch, 1 piece Indicators simulating the appliances (lights, blinds,...), 4 pcs
