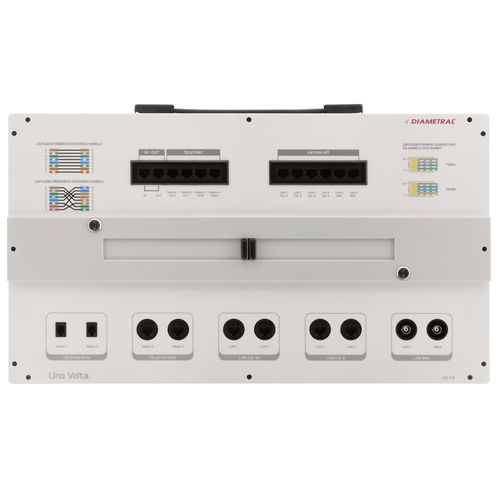

Electrical installation demonstration board UV-115

The UV-115 tutorial is used to practice and make experiments with the various types of data and telephone networks. Students will be introduced to the issue of network Cat3, Cat5e, Cat6, ISDN and RJ14. Lockable fault panel for simulation of faults and theirs subsequent detection. Parts used Patch panel 12 port 2 x RJ11 socket for analogue telephone 2 x RJ45 socket for ISDN line 2x RJ45 socket for Cat 5e data network 2x RJ45 socket for Cat 6 data network 2x BNC socket for data network
